GWR 107291 Macaw B Bogie Bolster
|GWRGreat Western Railway 107291 MacawGWR telegraphic code signifying a timber truck B Bogie Bolster|
GWRGreat Western Railway 107291 MacawGWR telegraphic code signifying a timber truck B Bogie Bolster
|Built By||GWRGreat Western Railway Swindon|
|Telegraphic code||MACAW B|
|1971||Arrived on SVRSevern Valley Railway|
|1985||GWRGreat Western Railway 150 main line appearance|
Design and service
Within the GWRGreat Western Railway Diagram Book, Diagram J covered rail and timber bolster wagons, principally the MACAW and the larger GANE. The MACAW (8 ton) and MACAW A (14 ton) were smaller 4-wheeled wagons. The MACAW B was a successful design, first introduced in 1904[note 1] and continuing to be built over the next fifty years with minor design changes. It was fitted with 5ft 6in plateframe bogies and had a 30 ton capacity. At 45 foot length in length over the headstocksThe underframe member across each end of a wagon carrying the buffers and coupling. Known as the Bufferbeam on a locomotive., it was the same length as the as the original 40 ton GANE. A modified version of the MACAW B was built for military use in World War 1 (Diagram J17) with a new non-military version introduced at the same time (Diagram J21), the main difference over previous versions being large-headed self-contained buffing and drawgear.
107291 was built at Swindon in 1935 to Diagram J21, Lot 1169. It saw service with the GWRGreat Western Railway and BRBritish Rail or British Railways(W) and later with the Round Oak Steel Works at Brierley Hill.
107291 arrived from Round Oak on 22 March 1971, having been acquired for preservation by the Great Western (SVR) Association.[note 2] It was quickly restored for use in service as a P.W.Permanent Way vehicle, that use being interrupted by a brief spell as a mock 'Pullman' carriage for filming of The Seven-Per-Cent Solution in 1975.
The following year 107291 was repainted over Easter, the finish resulting in a darker shade of grey. Some minor repairs were also carried out and seven rotten timbers were replaced as a stop-gap measure. It returned to Bewdley in August for a complete floor replacement, for which the timber cost over £1,000. Steve Peplow's 'Wagon Repair Notes' recorded that he had "...the dubious honour of being the only person to fall through the old floor during its removal, fortunately without serious injury. This only serves to prove the importance of renewing floor timbers on these vehicles as soon as is practically possible, before someone is hurt." A missing brake gear safety strap was also replaced.

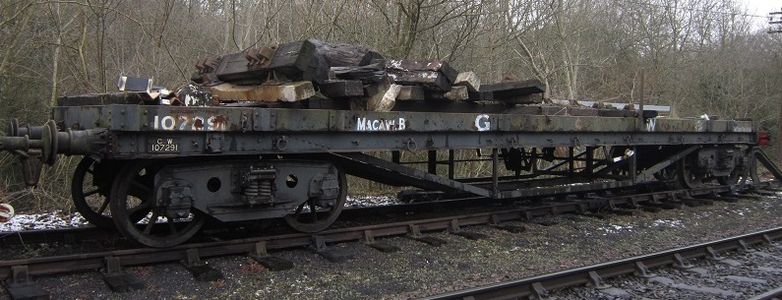

107291 continued in regular use as a transporter of rails, sleepers and point-work on the railway. However in recent years such duties have generally been taken over by more modern stock, with 107291 mostly spending time in sidings along the line. The main article picture shows the wagon in a siding at Highley in August 2016. As of 2021[update] 107291 is one of several wagons stored out of use in the 'Tenbury siding' at Bewdley.
'Mainline Railways' produced an OO Gauge model of 107291.
- The order of the Diagram J index seemed somewhat haphazard. The first MACAW B of 1904 was Diagram J11, with the modified 1907 version Diagram J4.
- The GW(SVRSevern Valley Railway)A was only formed in 1973 by the merger of two earlier organisations. SVRSevern Valley Railway Stock Books before then showed the ownership as 'SVRSevern Valley Railway Members'.
- Atkins, Beard & Tourret (2013) pp. 190-198.
- Atkins, Beard & Tourret (2013) p. 21.
- SVRSevern Valley Railway Stock Book 9th Edition
- SVRSevern Valley Railway News 78
- SVRSevern Valley Railway News 80
- SVRSevern Valley Railway News 82
